Product Name

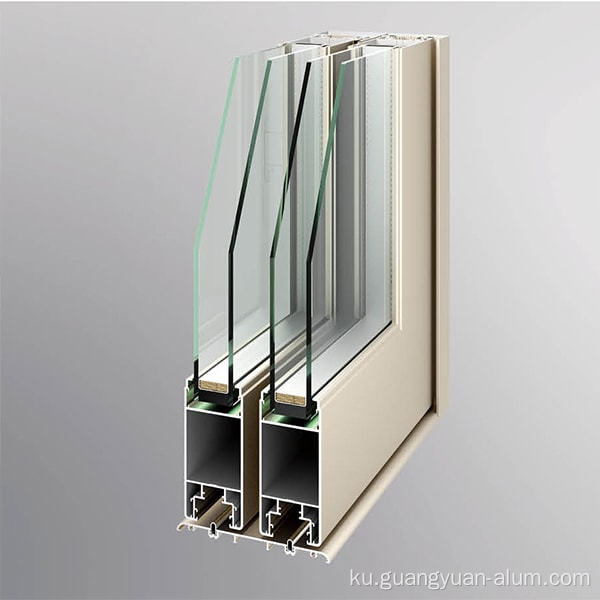

Aluminium sliding door

Manufacturing Standard

AS2047

Quality Certificate

ISO 9001:2015, ISO 14001:2015, CQM Certification, SGS

Aluminium Profiles

6063-T5 high quality thermal/non-thermal break aluminium profiles

Profiles Thickness

1.4mm for windows, 2.0mm for doors

Surface Treatment

Anodizing, electrophoresis, powder coating, fluorocarbon, and wooden color

Color

Silver, champagne, bronze, white, charcoal, black, brown, grey and wooden colors

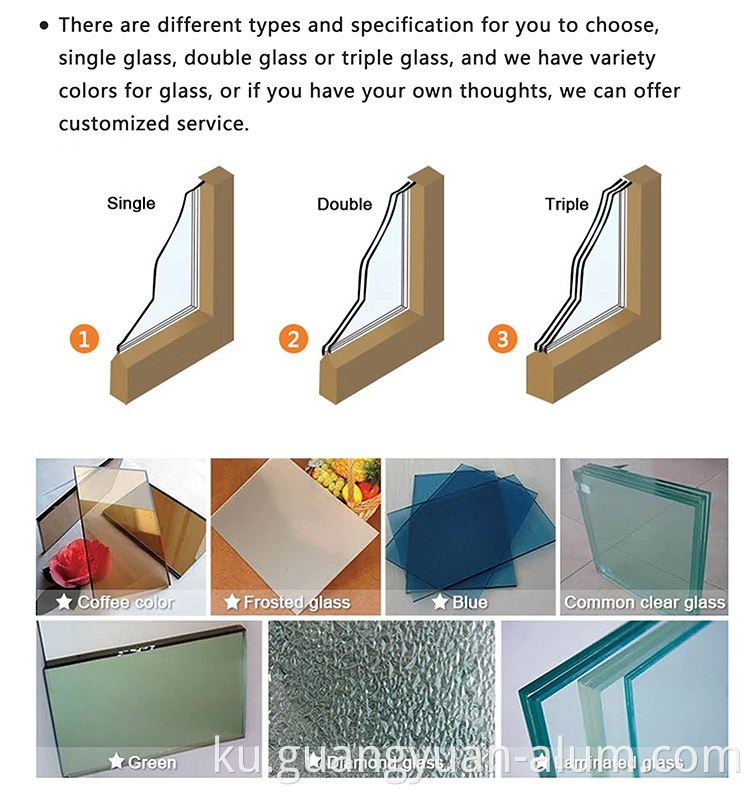

Glazing Type

tempered glazing, tinted glazing, frosted glazing, reflective glazing, laminated glazing and LOW-E glazing

Glazing Thickness

Single tempered glazing: 5mm, 6mm, 8mm, 10mm and 12mm

Double tempered glazing: 4+12A+4mm, 5+9A+5mm, 5+12A+5mm, 5+15A+5mm, 5+19A+5mm and 6+12A+6mm

Mesh

Stainless steel security mesh, diamond mesh, aluminium security mesh, and fiberglass flyscreen

Retractable screen, fixed screen and sliding screen

Sealing

Chinese famous brand silicone and EPDM strips

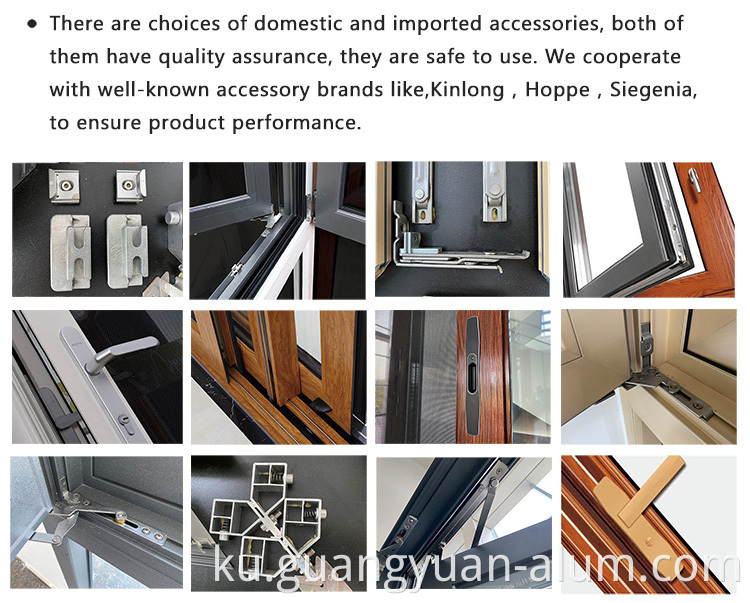

Hardware

KINLONG, HOPPE, HOPO, SIEGENIA AUBI, CMECH

Architrave

Depending on the customer’s requirements

Guarantee

10 years to 20 years

Application

Residential houses, commercial buildings, luxurious villas, modular houses, prefab houses and steel structure houses

MOQ

1 set

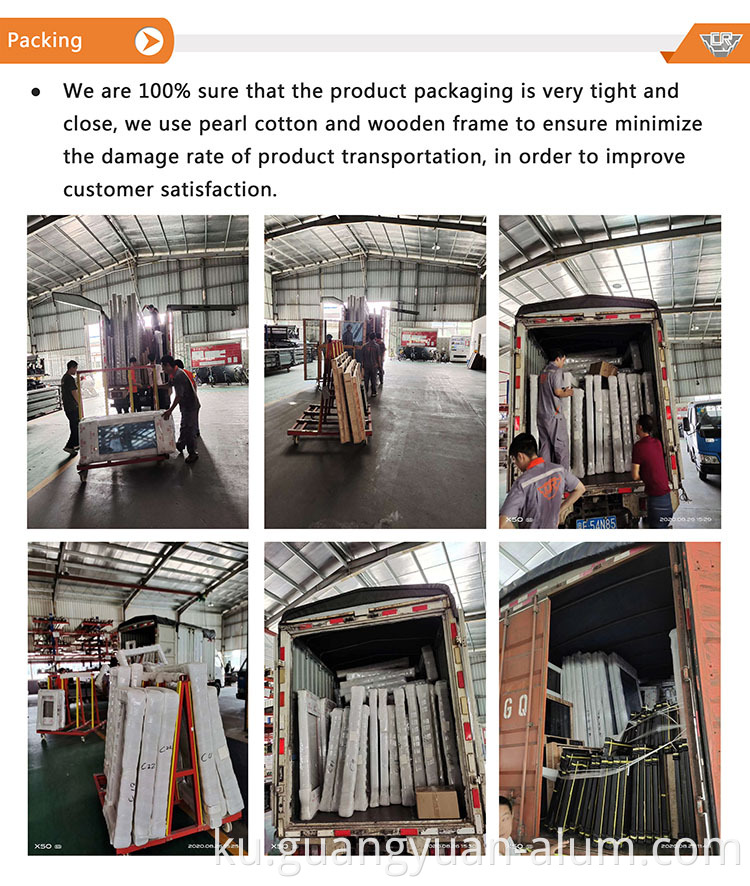

Packing Details

EPE foam packing and wooden crate packing

Payment Term

1) T/T: 30% of total value as deposit by T/T within 3 days to confirm the order, and the balance to be paid by T/T before loading the container.

2) L/C: 30% of total value as deposit to be paid by T/T within 3 days to confirm the order, and the balance to be paid by L/C at sight after loading the container.

3) Big order: Pay 30% of total value as deposit by T/T within 3 day to confirm the order, and the balance to be paid by T/T after delivery against the copy of B/L.

STRUCTURAL PARAMETERS

Profile Thickness

Frame Depth

Sash Width

2.0mm

138mm

90mm

PERFORMANCE PARAMETERS

Heat Insulation(m2·K)

Sound Insulation(DB)

Water Tightness(PA)

Air Tightness

Wind Load(KPa)

4W

45DB

700PA

4.5≤92>3.0

3.5≤P3>4.0

Level 4

Level 4

Level 6

Level 8

Level 8

FAQ

1.

Are you a manufacturer or a trading company?

--- We are aluminium extrusion company specialized in the production of aluminium profiles and aluminium windows since 1993. And you are warmly welcomed to visit our factory.

2.

What kinds of surface treatments can your company complete?

--- We can complete different kinds of surface treatments including mill finish, anodizing, electrophoresis, powder coating, wooden color, fluorocarbon coating, polishing and brushed, etc.

3.

Can you produce customized windows?

--- Yes, we can produce the windows as per customers’ window specifications.

4.

What is the lead time for mass production?

--- The time for mass production is around 20~45 days.

5.

How can you ensure high quality?

--- We use primary aluminium raw materials to make aluminium billets by ourselves, never mixing scrap to lower the cost.

--- Our QC are strict with final product inspection and only accept qualified products.

--- All the products are produced according international standard.
